Repair Kit for NASA’s NICER Mission Heading to Space Station

Understanding NICER: The Science Behind the X-ray Telescope

NICER, a compact X-ray telescope about the size of a washing machine, is mounted on the exterior of the ISS near its starboard solar array. It specializes in precise measurements of neutron stars, some of the densest objects in the universe, providing invaluable data on their structure and behavior. By observing X-rays emitted from these stellar remnants, NICER helps scientists probe matter under extreme conditions unattainable on Earth.

Beyond neutron stars, NICER has contributed to studying fast radio bursts—mysterious, high-energy astrophysical phenomena—as well as observing comets within our solar system. Additionally, NICER collects data about Earth’s upper atmosphere, offering insights into space weather and atmospheric composition. Its unique vantage point on the ISS enables continuous monitoring of the X-ray sky, making it a vital tool for astrophysics research.

The telescope operates remotely, controlled from the ground, and was installed robotically, underscoring its design for minimal direct human intervention. NICER’s innovative use of 56 X-ray concentrators, each equipped with nested circular mirrors, allows it to focus X-rays onto detectors with exceptional precision. This sophisticated design has enabled NICER to revolutionize our understanding of neutron stars and high-energy cosmic events.

The May 2023 Damage: How NICER’s Thermal Shields Were Compromised

In May 2023, NICER developed a ‘light leak’—a critical issue where unwanted sunlight began entering the telescope, saturating its sensors and disrupting data collection. This problem was traced back to damage sustained by NICER’s thermal shields, which are ultra-thin layers designed to block infrared, ultraviolet, and visible light while permitting X-rays to pass through.

These thermal shields are extraordinarily delicate, each about 500 times thinner than a human hair, and cover the 56 X-ray concentrators. They work in tandem with segmented sunshades that resemble a sliced pie, with six internal struts creating gaps. The damage was primarily concentrated in several small areas, the largest roughly the size of a U.S. postage stamp, with others closer in size to pinheads.

The damage allowed sunlight to penetrate during the ISS’s daytime, interfering with NICER’s ability to collect accurate X-ray measurements. Although nighttime observations remained unaffected, the light leak forced the mission team to adjust their daytime observing strategies, limiting NICER’s operational efficiency and scientific output.

Challenges of Repairing a Non-Serviceable Space Telescope

NICER was originally not designed for on-orbit servicing or repairs. Installed robotically and operated remotely, it lacked provisions for astronaut maintenance, posing a significant challenge for the repair team. This limitation required innovative thinking to devise a repair method compatible with existing station tools and NICER’s structural design.

The mission team had to overcome constraints related to the telescope’s delicate components and the microgravity environment of space. Any repair solution needed to be lightweight, easy to handle during a spacewalk, and capable of securely covering the damaged areas without compromising NICER’s sensitivity or operational integrity.

Collaboration across NASA centers, including Goddard Space Flight Center, Johnson Space Center, and the ISS program, was crucial. The team leveraged the station’s existing toolkits and astronaut expertise to develop a feasible repair approach, demonstrating the importance of interdisciplinary coordination in addressing unexpected challenges during space missions.

Designing the Patch Kit: A Pie-Shaped Solution for Precision Repair

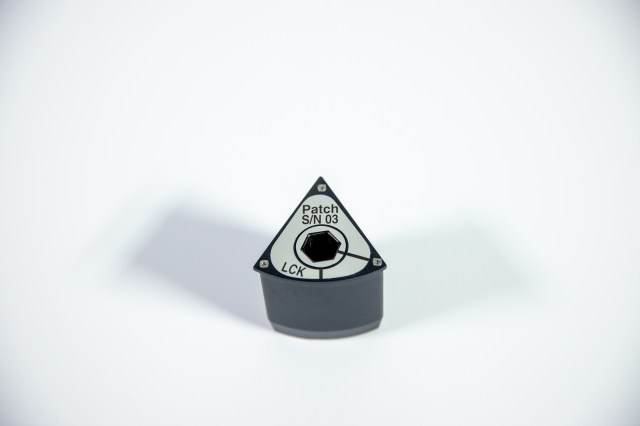

The innovative repair solution involved designing small, pie-shaped patches that would slide into the gaps of NICER’s sunshades. Each patch features a tab that fits snugly between the sunshade and the thermal shield, securing it in place without the need for adhesives or complex fastening mechanisms.

This design cleverly utilizes the existing segmented sunshade structure, allowing astronauts to install the patches during a spacewalk with relative ease. The patches effectively block sunlight from entering the telescope through the damaged areas, restoring NICER’s ability to collect uncontaminated X-ray data during the station’s daytime.

The repair kit includes 12 patches in total, providing spares in case of installation challenges or additional damage. These patches are carried in a specialized caddy, which also contains two spare sunshades, ensuring astronauts have all necessary materials during the extravehicular activity (EVA). This thoughtful preparation maximizes the chances of a successful repair.

Preparing for the Spacewalk: Logistics and Astronaut Training

After finalizing the patch kit design, NASA delivered the repair materials to Johnson Space Center in Houston in May 2024 for pre-flight preparation and packing. Extensive testing ensured the patches would perform reliably in the harsh space environment, including exposure to vacuum, temperature extremes, and radiation.

Astronauts assigned to the repair spacewalk undergo rigorous training in simulated microgravity environments and virtual reality setups. They practice handling the patch kit, maneuvering around NICER’s mounting location near the ISS’s starboard solar array, and performing precise installation steps under time constraints and safety protocols.

Coordination with ground control teams is also essential. Detailed procedures and contingency plans are developed to guide astronauts through the repair, with real-time support available during the EVA. This careful preparation underscores NASA’s commitment to mission success and crew safety.

Scientific and Operational Impact of the Repair

Restoring NICER to full operational capacity is critical for continuing its groundbreaking science. By eliminating the light leak, the patches will enable uninterrupted daytime observations, increasing the volume and quality of data collected on neutron stars, fast radio bursts, and other high-energy phenomena.

The repair also extends NICER’s mission lifespan, allowing it to maintain a more regular observing schedule and contribute valuable insights into the cosmos. This is especially important given the telescope’s unique capabilities and limited availability of similar instruments in low Earth orbit.

Moreover, this repair mission sets a precedent for servicing other space telescopes not originally designed for maintenance. It demonstrates that with ingenuity and collaboration, in-orbit repairs can be accomplished, potentially saving costly replacements and enhancing the resilience of scientific assets in space.

NICER’s Place in the Legacy of Space Observatory Repairs

NICER will become only the fourth science observatory to be repaired in orbit, joining iconic missions like the Hubble Space Telescope. Unlike Hubble, which was designed for servicing, NICER’s repair represents a pioneering effort to retrofit a non-serviceable instrument, showcasing NASA’s adaptability and problem-solving expertise.

This milestone highlights the evolving nature of space operations, where on-demand repairs and upgrades may become standard practice to maximize scientific returns and minimize mission downtime. The success of NICER’s repair could influence future designs to incorporate modularity and repairability.

Beyond technical achievements, the repair mission symbolizes human ingenuity in overcoming the challenges of space exploration. It reinforces the value of the ISS as a platform not only for science but also for advancing capabilities in spacecraft maintenance and astronaut operations.

Looking Ahead: The Future of NICER and Space Telescope Maintenance

Following the scheduled spacewalk and patch installation, NICER is expected to resume normal operations with enhanced performance. The mission team will closely monitor telescope data to verify the effectiveness of the repair and make any necessary adjustments to observation strategies.

Lessons learned from the NICER repair will inform future missions, encouraging the incorporation of repair-friendly designs and contingency plans. As space telescopes become more sophisticated and essential for understanding the universe, maintaining them in orbit will be increasingly important.

NASA’s success with NICER’s repair kit delivery and installation paves the way for more ambitious servicing missions, potentially involving robotic assistants or advanced astronaut tools. This progress supports the long-term vision of sustainable, resilient space science infrastructure.

Conclusion

The upcoming repair mission for NASA’s NICER telescope exemplifies the agency’s ability to respond rapidly and innovatively to unforeseen challenges in space. By designing and deploying a specialized patch kit, NASA is not only restoring an invaluable scientific instrument but also advancing the frontier of on-orbit maintenance capabilities. This endeavor reinforces the importance of the ISS as a hub for scientific discovery and operational innovation. As NICER returns to full functionality, it will continue to unravel the mysteries of neutron stars and high-energy astrophysics, enriching our understanding of the universe for years to come.
