Module 1: Instrumentation Fundamentals & Calibration

The Importance of Standardized Measurement Units

Standardized units of measurement are the universal language of instrumentation, enabling consistency and interoperability across diverse industries. The International System of Units (SI) provides a globally accepted framework that defines base units such as the pascal (Pa) for pressure, kelvin (K) for temperature, cubic meters per second (m³/s) for flow, and meters (m) for level measurement. These units ensure that instruments calibrated in one region or industry can be accurately interpreted and integrated elsewhere.

Each industry often adapts these units to fit specific operational needs. For instance, the oil and gas sector commonly uses pounds per square inch (psi) and bar for pressure measurements, while nuclear plants rely on precise kelvin values for reactor temperature monitoring. Power plants typically measure turbine exhaust temperatures in both Celsius and Fahrenheit to maintain operational efficiency and safety. This standardization minimizes confusion and errors during data exchange and instrumentation calibration.

Conversion between SI units and industry-specific units is a critical skill in instrumentation. For example, 1 pascal equates to 0.00001 bar, and 1 cubic meter per second corresponds to approximately 15,850 gallons per minute (GPM). Being fluent in these conversions allows technicians to interpret readings correctly and ensures that calibration aligns with operational parameters, promoting safety and quality across processes.

Understanding Accuracy, Precision, and Measurement Errors

Accuracy and precision are foundational concepts in instrumentation that influence the reliability of measurements. Accuracy refers to how close a measurement is to the true or accepted value, while precision indicates the repeatability or consistency of measurements under unchanged conditions. Both parameters are crucial; an instrument can be precise but inaccurate if it consistently produces the same erroneous measurement.

Measurement errors are deviations from the true value and can arise due to environmental factors, instrument wear, or calibration drift. These errors are usually expressed as a percentage of full scale (FS), such as ±0.5% FS. Understanding the source and type of errors helps in diagnosing instrument problems and maintaining calibration standards. For example, inaccurate pressure readings in a pipeline can lead to dangerous overpressure conditions, while imprecise temperature control may compromise product quality.

Visual analogies, such as the dartboard analogy, help illustrate these concepts: high accuracy with low precision results in scattered but centered hits, whereas high precision with low accuracy produces tight clusters away from the bullseye. Balancing both accuracy and precision is essential for dependable instrumentation performance and process control.

Range, Span, and Linearity in Instrumentation

The range of an instrument defines the minimum and maximum values it can measure effectively. For example, a temperature sensor may have a range from -50°C to 150°C. The span is the difference between these limits and represents the usable measurement interval, such as 200°C in the previous example. Selecting the appropriate range and span is vital to avoid saturation or damage to the instrument and to ensure meaningful data capture.

Linearity describes how closely the output of an instrument follows a straight line across its range. Ideal linearity ensures proportional output corresponding to input changes, which simplifies data interpretation and control. However, real-world instruments often exhibit deviations from linearity due to sensor characteristics or electronic components. These deviations must be accounted for during calibration to maintain measurement fidelity.

Industry examples highlight the importance of these parameters. Pressure transmitters used in hydraulic systems may operate from 0 to 600 psi, while resistance temperature detectors (RTDs) in nuclear reactors cover a range from -200°C to 500°C. Graphical representations of linearity curves help technicians visualize and correct non-linear behavior during calibration, ensuring instruments meet specified performance criteria.

Hysteresis and Deadband: Critical Effects on Instrument Performance

Hysteresis refers to the difference in an instrument’s output when the input is approached from increasing versus decreasing directions. This phenomenon is often caused by mechanical friction or material properties within sensors and valves. For example, a valve stem may respond differently when opening versus closing, affecting control accuracy. Recognizing hysteresis is essential to diagnose and mitigate potential instability in control loops.

Deadband describes a range of input values over which there is no change in output, often due to mechanical slack or sensor insensitivity. In safety-critical systems, such as oil and gas emergency shutdown valves, deadband can delay response times, posing significant hazards. Similarly, hysteresis in nuclear reactor control rods can contribute to reactor instability if not properly managed through precise calibration.

Visual tools like hysteresis loops graphically depict output lag during input reversals, aiding technicians in understanding and quantifying these effects. Advanced instrumentation design and regular calibration help minimize hysteresis and deadband, ensuring smoother and safer operation of industrial systems.

Hands-On Calibration Procedures: Pressure and Temperature

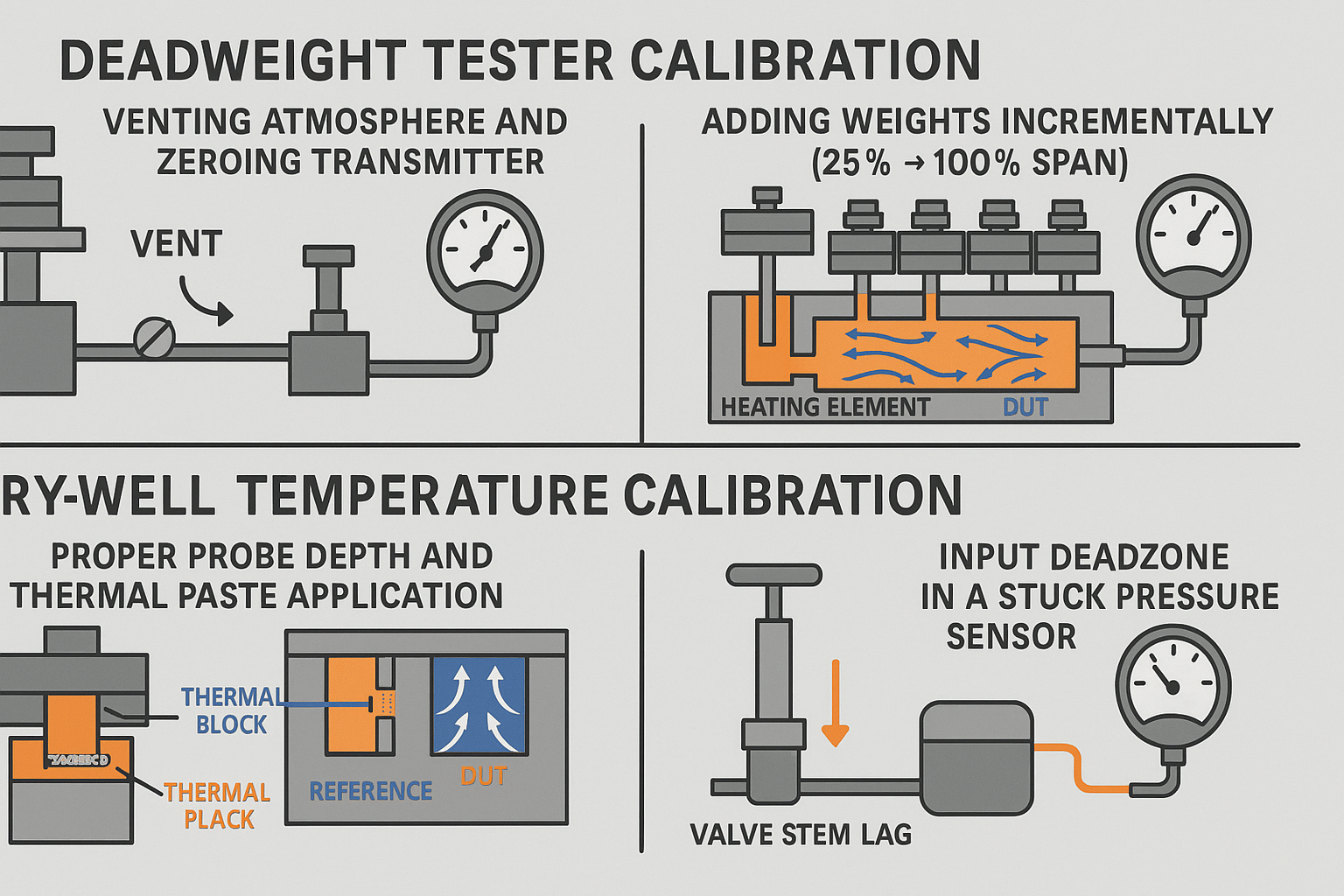

Calibration is the process of verifying and adjusting an instrument’s output to align with known standards. For pressure calibration, a deadweight tester is frequently used as a primary standard. This device applies precise weights on a piston to generate known pressure values. The technician begins by venting the system to zero the gauge, then incrementally applies calibrated weights, recording the instrument’s response at multiple points (0%, 25%, 50%, 75%, 100% span). Calculating errors and adjusting zero and span ensures the instrument meets tolerance requirements, typically within ±1% FS.

Temperature calibration often employs a dry-well calibrator, a portable heat source that provides stable temperature setpoints. Both the device under test (DUT) and a reference sensor, such as an RTD or thermocouple, are inserted into the dry-well. The technician tests multiple setpoints across the instrument’s range, allowing stabilization time at each point to record accurate readings. As-found data documents initial errors before adjustments are made using onboard controls or communication protocols like HART.

Safety is paramount during calibration. Handling high-pressure equipment requires personal protective equipment (PPE) and adherence to protocols to prevent accidents. In nuclear facilities, specialized rad-hardened dry-wells are used near reactors to withstand radiation while providing precise calibration. Detailed animations and step-by-step guides enhance technician understanding and execution of these calibration procedures.

Industry-Specific Calibration Standards and Protocols

Different industries enforce stringent calibration standards to maintain safety, quality, and regulatory compliance. In the oil and gas sector, API 570 mandates calibration tolerances of ±1% FS for pressure safety valves to prevent catastrophic failures. The nuclear industry follows IEEE 344 guidelines, requiring reactor coolant temperature sensors to maintain an accuracy within ±0.25% FS, ensuring stable reactor operation.

Power generation facilities adhere to ASME B31.1 standards for steam flow meters, with calibration tolerances typically within ±0.5% FS. Manufacturing environments often comply with ISO 9001 requirements, which include calibration controls for batch reactor controllers to guarantee product consistency and traceability. These protocols define calibration intervals, documentation practices, and acceptable error limits.

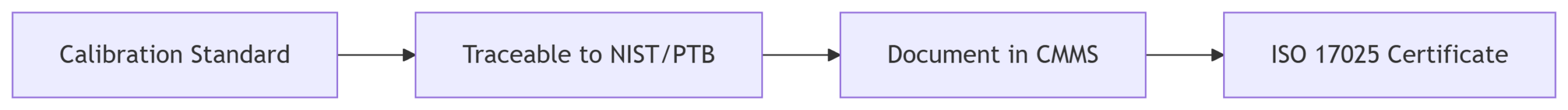

Adherence to these standards involves rigorous documentation, traceability to national or international standards, and periodic audits. Calibration records serve as evidence of compliance and support continuous improvement initiatives. Understanding and implementing industry-specific protocols are critical for instrumentation professionals tasked with maintaining operational excellence and regulatory conformity.

Common Challenges in Instrumentation Calibration and How to Overcome Them

One common challenge is instrument drift, where sensor outputs gradually deviate over time due to aging components or environmental influences. Regular calibration schedules and preventive maintenance help detect and correct drift before it impacts process control. Using high-quality reference standards and environmental controls during calibration also minimizes variability.

Another issue is the influence of environmental factors such as temperature fluctuations, vibration, and electromagnetic interference, which can affect instrument accuracy. Proper installation practices, shielding, and selecting instruments rated for specific environmental conditions reduce these effects. Calibration procedures often include environmental conditioning to simulate operational conditions for more accurate adjustments.

Technician skill level and procedural consistency can also impact calibration quality. Comprehensive training, clear standard operating procedures, and use of automated calibration tools enhance repeatability and reduce human error. Emphasizing safety and documentation ensures that calibration activities support long-term reliability and compliance.

Future Trends in Instrumentation and Calibration Technologies

Advancements in smart instrumentation and digital calibration tools are transforming traditional calibration methods. Devices equipped with self-diagnostic capabilities and remote calibration features reduce downtime and improve accuracy. Integration with asset management systems enables predictive maintenance and real-time performance monitoring.

Wireless sensor networks and IoT-enabled instruments facilitate continuous calibration verification, alerting personnel to deviations immediately. This proactive approach enhances safety and efficiency, particularly in hazardous or remote environments. Additionally, augmented reality (AR) and virtual reality (VR) technologies are emerging as training aids, providing immersive calibration procedure simulations.

Standardization efforts continue to evolve, with new protocols accommodating digital communication and cybersecurity considerations. Embracing these innovations requires upskilling personnel and updating infrastructure but promises significant benefits in measurement reliability, operational cost savings, and regulatory compliance.

Conclusion

Mastering instrumentation fundamentals and calibration techniques is essential for maintaining the safety, quality, and efficiency of industrial processes. By understanding standardized measurement units, the nuances of accuracy and precision, and the critical effects of hysteresis and deadband, professionals can ensure instruments perform reliably. Adhering to hands-on calibration procedures and industry-specific protocols further supports compliance and operational excellence. As technology advances, embracing digital tools and smart instrumentation will enhance calibration accuracy and process control, securing a robust foundation for future industrial innovation.
