Wärtsilä 18V32DG Instrumentation: Monitoring and Troubleshooting Guide

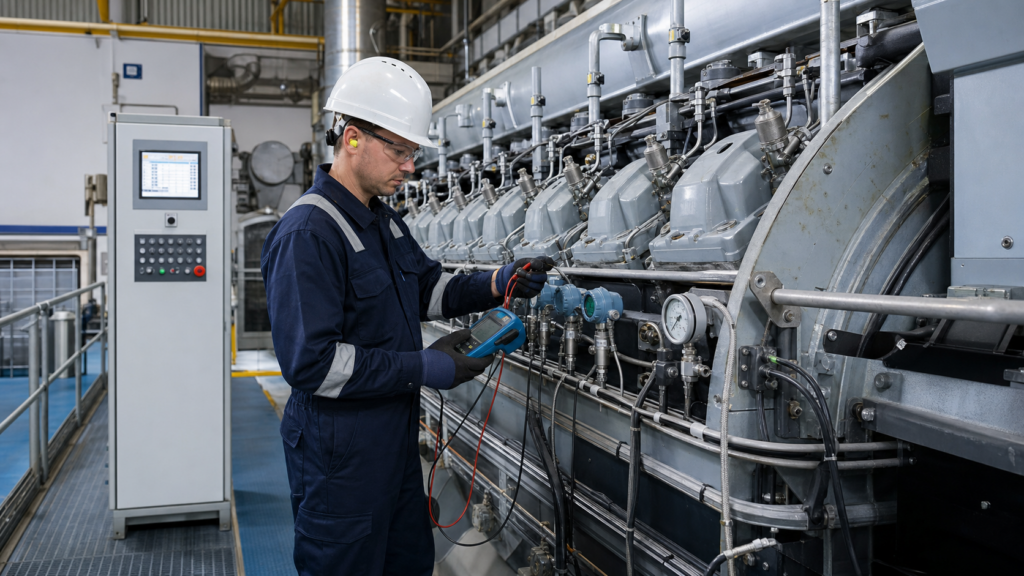

Instrumentation on a Wärtsilä 18V32DG generating set gives operators and the engine-control system evidence about the machine’s condition. Temperature, pressure, speed, position and electrical measurements support starting, load control, protection, maintenance and fault diagnosis. The exact arrangement depends on engine generation, installation, classification requirements and later upgrades, so a generic sensor list must never replace the approved project drawings and manuals.

The designation normally describes an 18-cylinder V-configuration engine in the Wärtsilä 32 family driving a generator. Instrumentation work crosses mechanical, electrical and automation boundaries. A plausible value is not automatically a correct value: the technician must understand the process, measuring chain, configured limits and consequence of bypassing a signal.

Understand the measurement chain

A process value begins at a sensing point. A thermocouple, resistance temperature detector, pressure transmitter, speed pickup, switch or position device converts a physical condition into a signal. Cabling and junction boxes carry that signal to an input module or dedicated protection circuit. Software then scales, filters, displays and compares the value with configured thresholds.

Each part can fail differently. A blocked pressure connection may leave a healthy transmitter reporting the wrong process condition. A loose terminal can create intermittent readings. Incorrect input scaling can make a valid current signal appear implausible. Before replacing a sensor, follow the complete loop from process connection to operator display and confirm the applicable range, units and channel identity.

Typical monitored systems

• Lubrication: oil pressure and temperature, filter differential pressure and relevant tank or sump levels.
• Cooling: high- and low-temperature water values, circuit pressure and temperatures around engine components.
• Combustion and exhaust: cylinder or bank exhaust temperatures, charge-air conditions and selected combustion-related values.
• Speed and timing: crankshaft speed, phase or position references and overspeed protection.
• Starting and control air: pressures, valve feedback and permissive conditions used by start logic.
• Generator interface: electrical protection, breaker status, load and commands exchanged with the plant-control system.

Not every installation exposes the same measurements, and control-system retrofits can change architecture. Wärtsilä describes UNIC as an embedded system for engine monitoring, control and fundamental safety functions, including start and stop logic and speed or load control. Its current UNIC overview is useful background, but the software version and engine-specific documentation govern actual work.

Separate indication, alarm and protection

An indicated value helps an operator understand conditions. An alarm calls attention to an abnormal state. A load-reduction or shutdown function automatically limits risk. Although one sensor may contribute to several functions, do not assume every display channel is the final protective channel. Critical protection may use independent sensors, hardwired circuits, voting or redundancy.

Wärtsilä’s UNIC information for diesel engines describes monitoring of temperature, pressure, speed and load, together with safety actions such as alarms, shutdowns, emergency stops and load reductions. Treat configured setpoints as controlled engineering data. Never change one merely to silence a recurring alarm.

Use trends, not isolated numbers

A single value may fall within limits while its rate of change signals a developing problem. Compare like-for-like measurements at similar load and ambient conditions. Exhaust-temperature spread across cylinders, gradual loss of lubricating-oil pressure or a rising filter differential can be more informative than one snapshot. Confirm that timestamps and channel scaling are trustworthy before drawing conclusions.

Look for common-cause patterns. Several unrelated channels changing together may indicate a shared power supply, reference, input module or communications problem. One cylinder reading that disagrees with neighbouring cylinders may point to the sensor, wiring or cylinder process. Trends guide investigation; they do not by themselves prove the cause.

A safe troubleshooting sequence

1. Identify the exact engine, channel, alarm text, timestamp and operating condition.
2. Review the authorised schematic, cause-and-effect chart, setpoint list and previous work.
3. Assess whether continued operation or testing is permitted; involve the responsible operator.
4. Compare the displayed value with related measurements and a suitable independent reference.
5. Inspect the process connection, sensor condition, connectors, cable route, shielding and terminals.
6. Verify loop supply, signal and input scaling using approved test equipment and procedures.
7. Change one variable at a time, record results and restore every temporary test arrangement.
8. Validate the repaired loop through the required functional test and update maintenance records.

Never disconnect a live protection channel casually. Isolation, permits, lockout or tagout, hot-surface precautions and redundant protection must be addressed before touching equipment. Injecting a test signal can trigger an alarm, load reduction, shutdown or start permissive. Coordinate the test and confirm its scope at both local and remote control positions.

Calibration and functional testing

Calibration compares an instrument with a traceable reference and documents error across the required range. It is not simply adjusting the output at one point. Record the as-found result before adjustment, then the as-left result. Check units, range, damping, polarity and sensor type. For temperature loops, consider the sensor, extension cable, compensation and input together.

A calibrated transmitter does not prove that the entire protective function works. Functional testing may need to verify the input module, displayed value, alarm annunciation, delay, acknowledgement, event record and authorised final action. Follow the engine maker, plant and classification procedures; use simulation only where the procedure permits it.

Build maintainable records

Keep loop drawings, cable schedules, setpoint records and software backups under change control. A work order should state the symptom, conditions, tests, references, as-found data, parts changed and final validation. Label replaced devices and dispose of them according to site policy. Review recurring faults for vibration, heat, moisture, connector strain or process contamination rather than repeatedly replacing the same component.

Good 18V32DG instrumentation practice combines process knowledge with disciplined measurement. Start with the installed configuration, preserve protection, compare related evidence and test the complete function after repair. When documentation conflicts with the machine, stop and escalate through the authorised technical route instead of guessing.
