Description
SPECIFICATIONS
Brand Name: MODX
Origin: Mainland China
Place of Origin: Guangdong, China
Brand Name: Power World heat pump
Model Number: PW008-KZXYC-F mini pool heat pump
Housing Material: metal
Storage / Tankless: Instant / Tankless
After-sales Service Provided: Free spare parts, Return and Replacement, Overseas Call Centers
Warranty: 2 years
Type: Air Source Heat Pump, Swimming Pool Heater
Installation: Freestanding
Application: Outdoor, Hotel, Commercial, Household, Household
Power Source: Electric
App-Controlled: Yes
Private Mold: Yes
Function: Swimming Pool Heating
Compressor: Gree
Heat exchanger: Titanium Heat Exchanger
Refrigerant: R32
Heat source: Air Source 75%+ity25%
Sound Level: 45dB(1m)

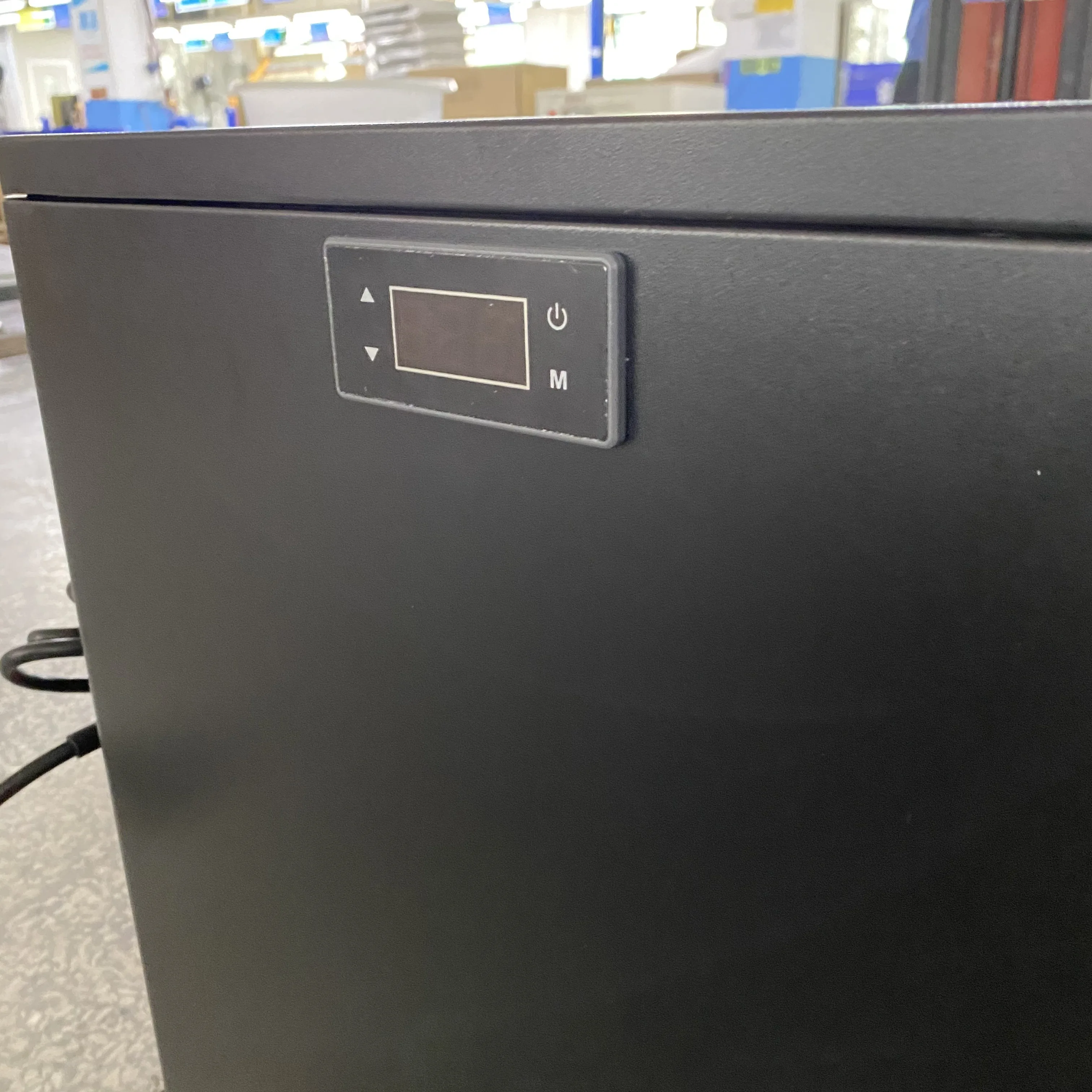

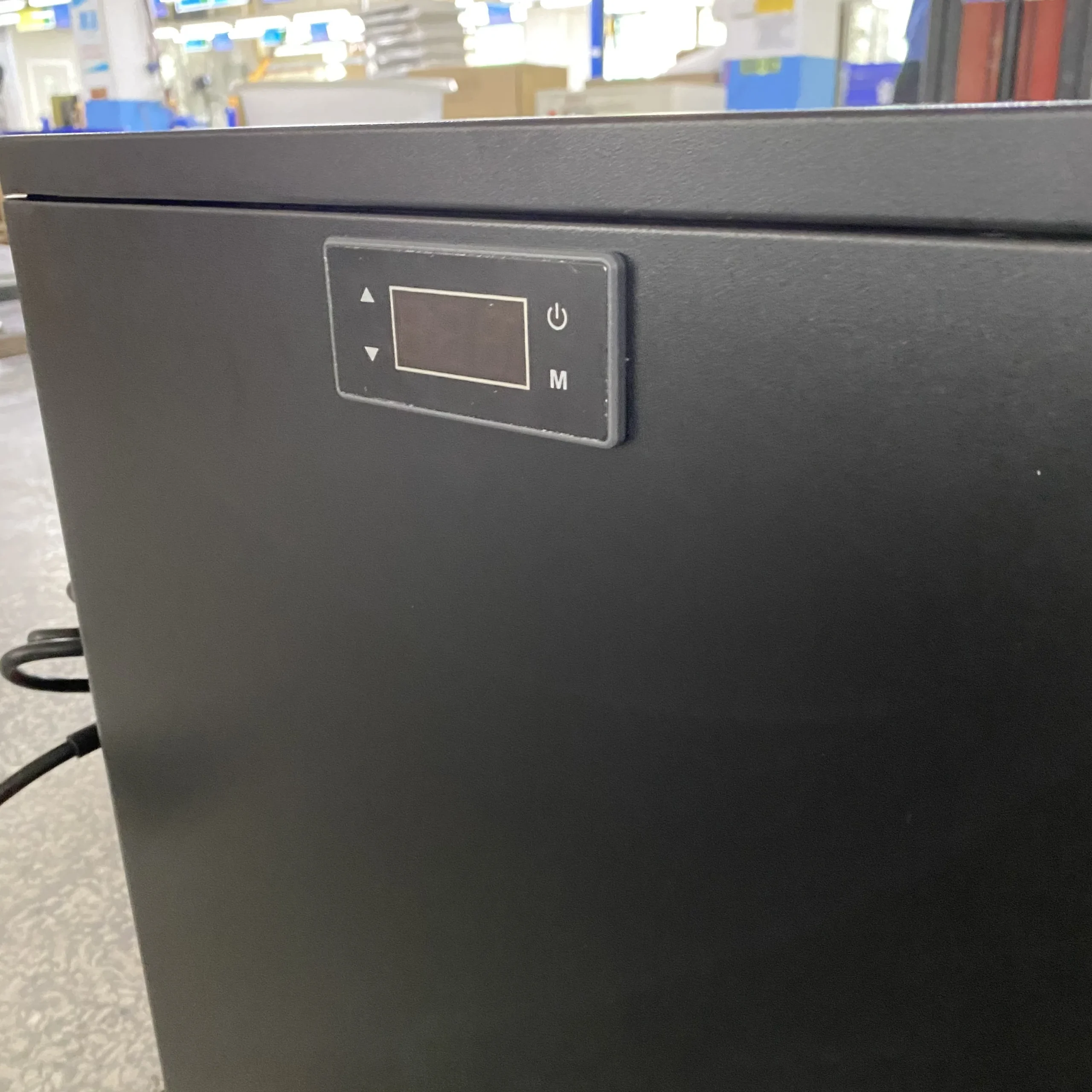

Controller: Digital LCD and wifi
Keyword: heat pump water heaters
Use: Ground swimming pool, swimming pool, Jacuzzi, SPA water heating

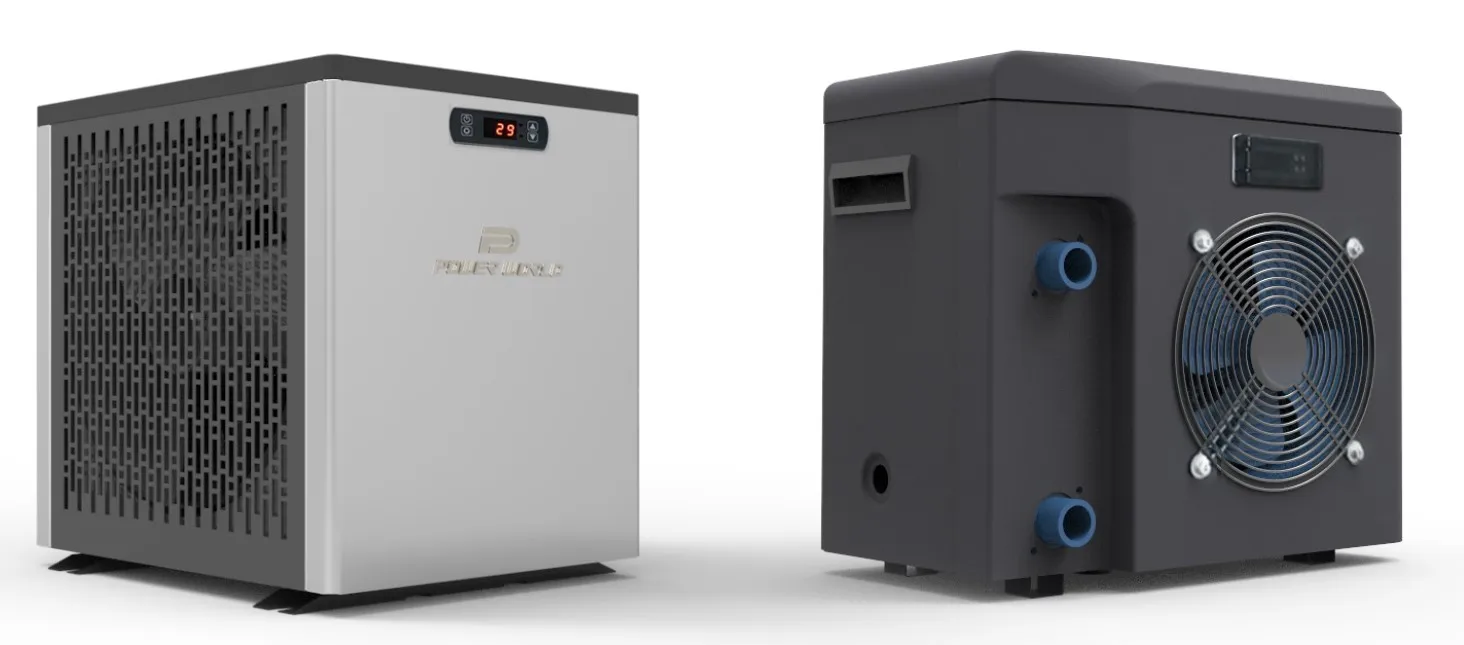

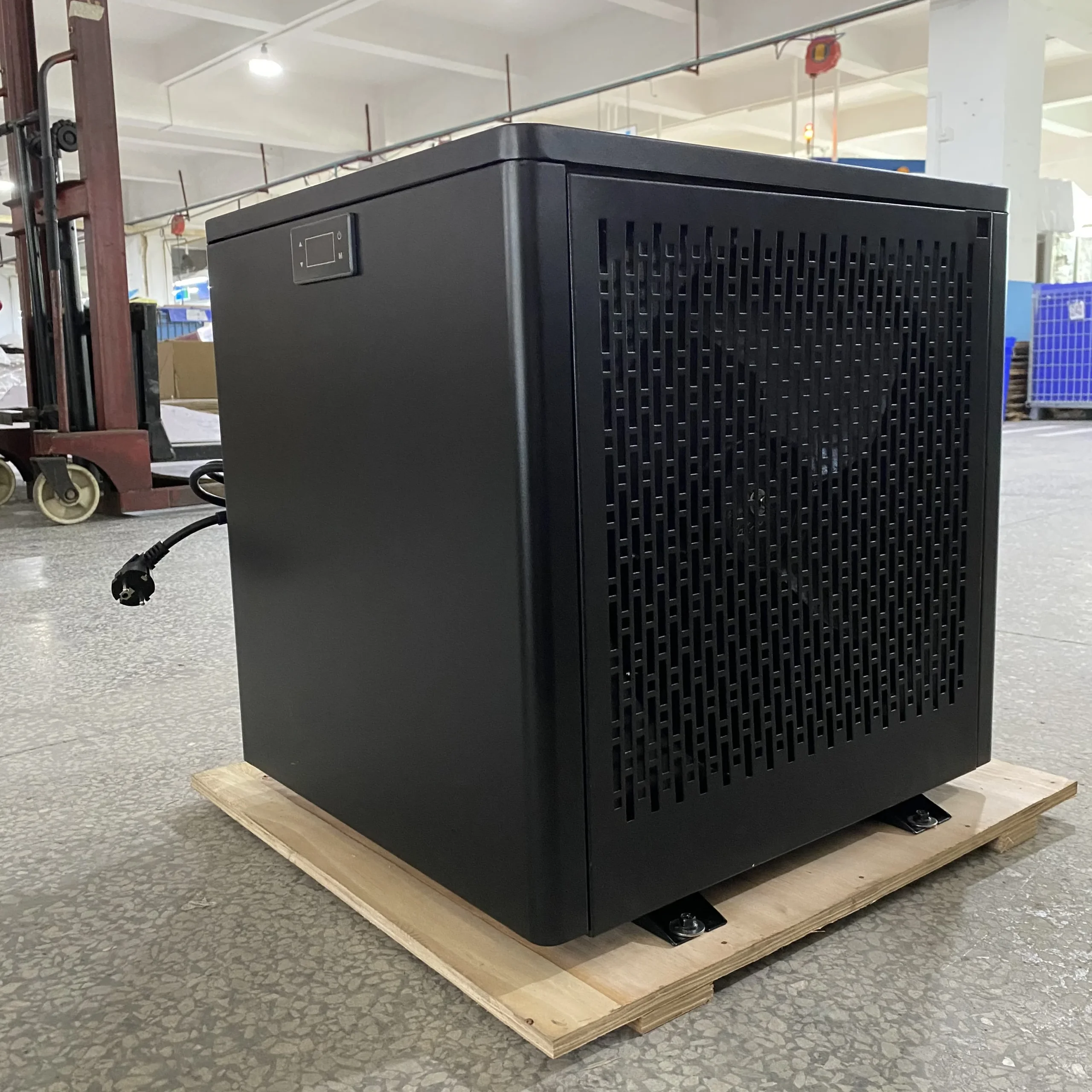

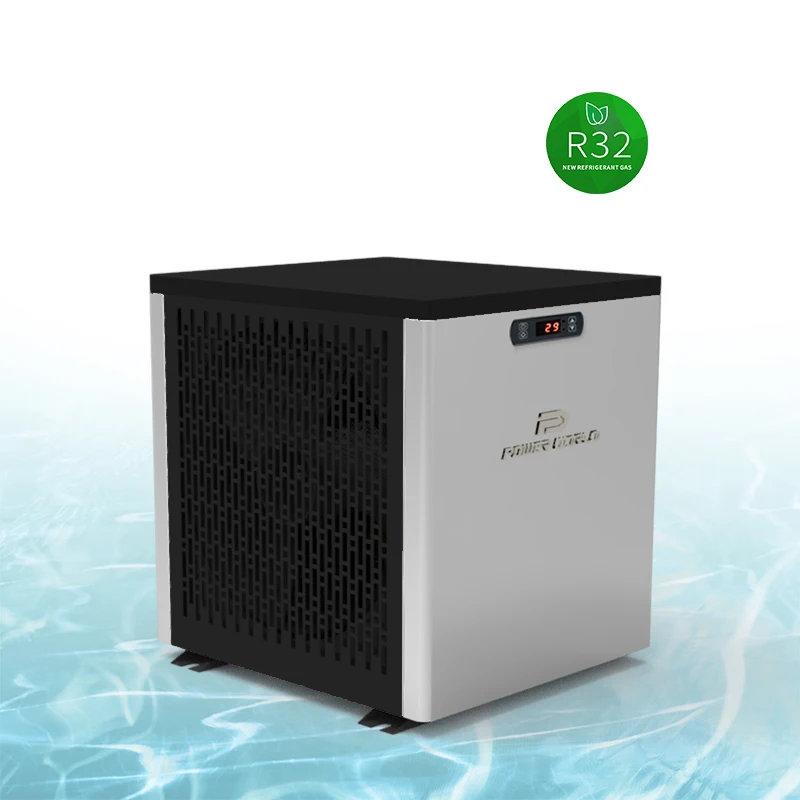

Best selling Portable air to water heater swimming pool mini heat pump for upper pool 30 m3

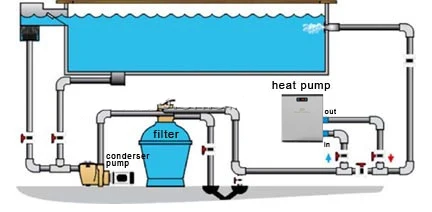

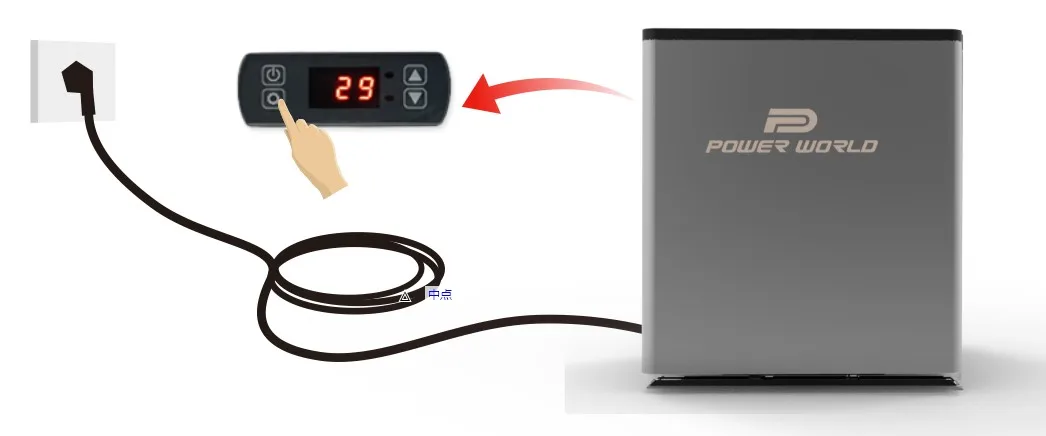

SIMPLE INSTALLATION & OPERATION
|
Model
|
PW005-KZXYC-F
|
PW008-KZXYC-F
|
PW012-KZXYC-F
|
PW015-KZXYC-F
|
||||
|
Advised pool volume (m3)
|
5~15
|
10~20
|
12~22
|
15~25
|
||||
|
Operating air temperature (℃)
|
-5 ~43
|
Â
|
Â
|
Â
|
||||
|
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
|
Â
|
Â
|
Â
|
Â
|
||||
|
Heating capacity (kW)
|
2.8
|
3.5
|
4.5
|
5.5
|
||||
|
Heating Capacity(Btu)
|
9520
|
11900
|
15300
|
18700
|
||||
|
Consumed power (kW)
|
0.56
|
0.65
|
0.83
|
1.02
|
||||
|
COP
|
5.0
|
5.4
|
5.4
|
5.4
|
||||
|
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
|
Â
|
Â
|
Â
|
Â
|
||||
|
Heating capacity (kW)
|
2.0
|
2.5
|
3.3
|
3.9
|
||||
|
Heating Capacity(Btu)
|
6800
|
8500
|
11050
|
13328
|
||||
|
Consumed power (kW)
|
0.53
|
0.63
|
0.81
|
0.98
|
||||
|
COP
|
3.8
|
4.0
|
4.0
|
4.0
|
||||
|
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
|
Â
|
Â
|
Â
|
Â
|
||||
|
Cooling capacity (kW)
|
1.5
|
2.0
|
2.6
|
3.3
|
||||
|
Sound pressure at 1m dB(A)
|
45
|
46
|
47
|
48
|
||||
|
Sound pressure at 10m dB(A)
|
28
|
30
|
31
|
32
|
||||
|
Heat exchanger
|
Spiral titanium tube in PVC
|
Â
|
Â
|
Â
|
||||
|
Casing
|
Metal Casing
|
Â
|
Â
|
Â
|
||||
|
Power supply
|
220 ~240V/1 Ph/50Hz
|
Â
|
Â
|
Â
|
||||
|

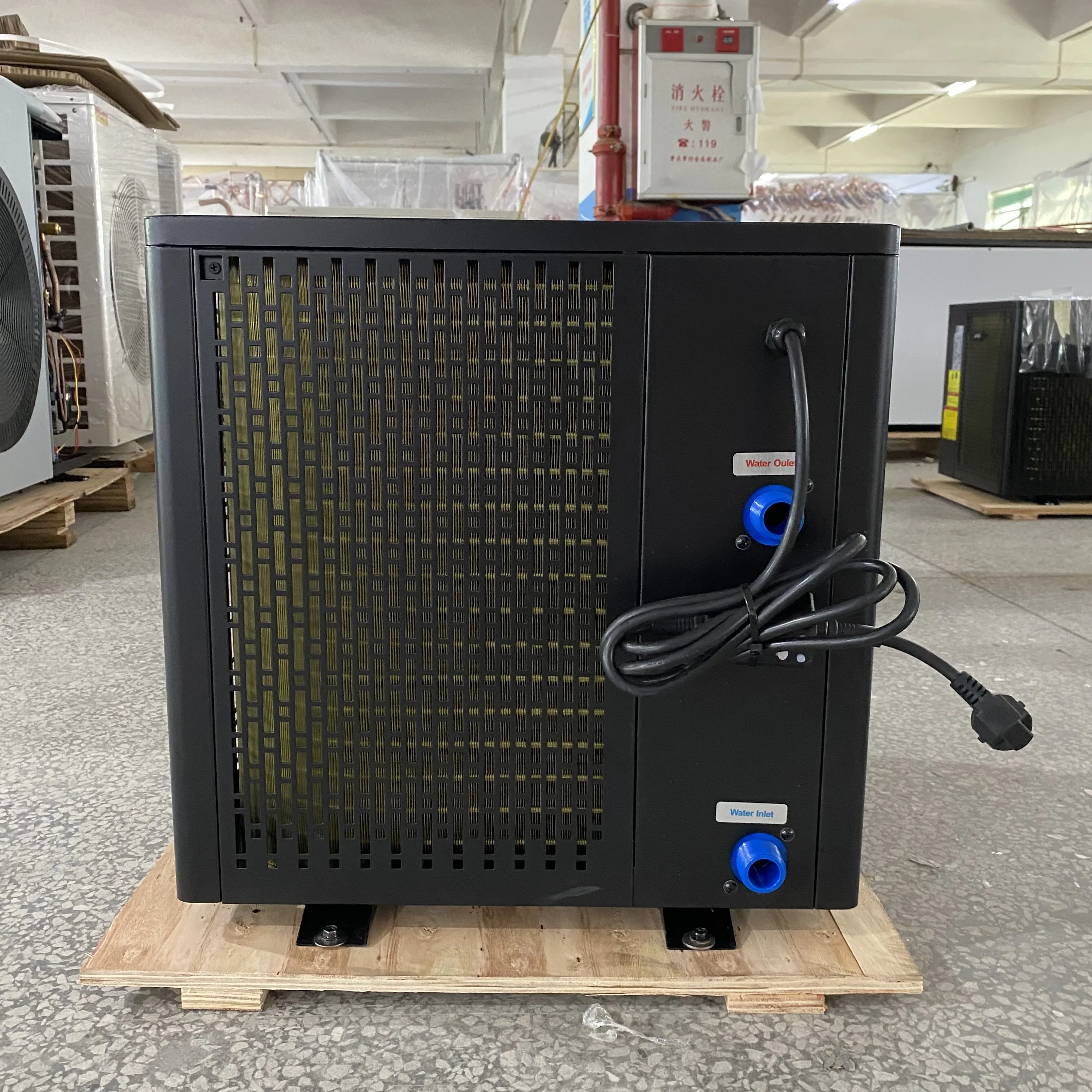

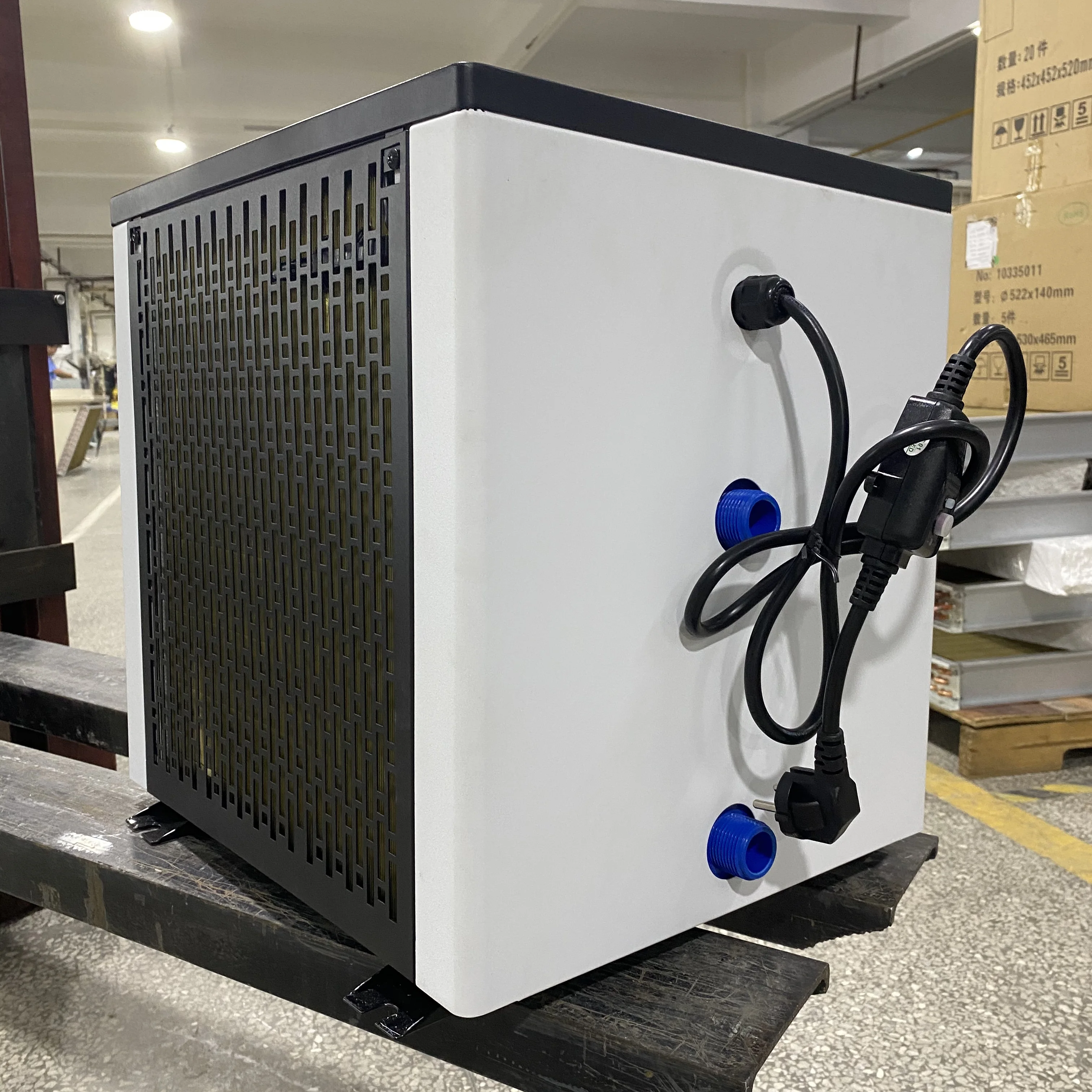

Water Connection (mm)
|
Φ32
|
Â
|
Â
|
Â
|
||||
|
Rated input current at air 15℃(A)
|
2.42
|
2.88
|
3.50
|
4.30
|
||||
|
Advised water flux (m³/h)
|
1.0-1.5
|
1.5-2.0
|
1.7-2.2
|
2.0-2.5
|
||||
|
Water Pressure Drop (max) kPa
|
2
|
2
|
4
|
4
|
||||
|
Net weight/Gross weight(kg)
|
25/27
|
26/28
|
33/36
|
34/37
|
||||
|
Carton size(mm)
|
394*444*435mm
|
Â
|
498*499*500mm
|
Â
|
||||
|
Package size(mm)(carton)
|
420*510*485
|
Â
|
555*576*542
|
Â
|
||||
|
Package size(mm)(Polywood)
|
437*510*475
|
Â
|
572*576*545
|
Â
|
||||
|
Loading quantity (20GP/40GP/40HQ)
|
208/416/520
|
Â
|
144/288/288
|
Â
|
||||
|
Refrigerant consumption(g)
|
200g
|
265g
|
320g
|
380g
|
||||
|
Refrigerant
|
R32
|
Â
|
Â
|
Â
|
||||
|
Compressor
|
Gree
|
Â
|
Â
|
Â
|
||||
|
Four-way valve
|
Sanhua
|
Â
|
Â
|
Â
|
||||
|
Expansion valve
|
Sanhua
|
Â
|
Â
|
Â
|
||||
|
Operating water temperature (℃) heating
|
9 ~43
|
Â
|
Â
|
Â
|
||||
|
Operating water temperature (℃) cooling
|
9 ~35
|
Â
|
Â
|
Â
|
||||
Power World New Energy Technology Co.,Ltd.
