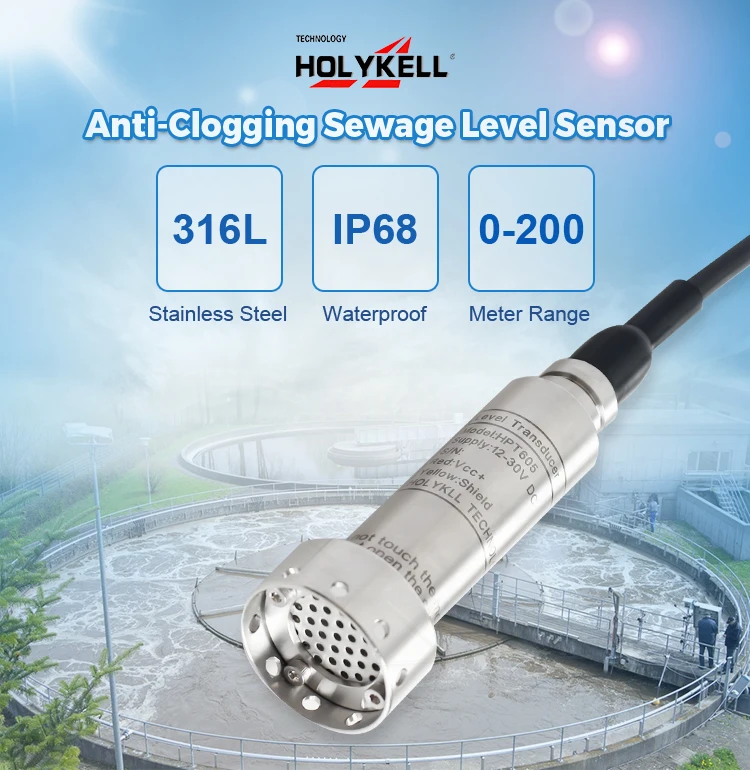

Holykell OEM Sewerage, air sisa, odpadove vody, waste water Level Sensor HPT605
United States (US) dollar
Nigerian naira
Pound sterling
Free Shipping
Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.
2-year warranty
Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
Grade: Industrial
Warranty: 12 months
Customized support: OEM, ODM
Place of Origin: Hunan, China
Brand Name: Holykell
Model Number: HPT605
Material: stainless steel
Mode: submersible level sensor
Level Range: 0-1m…..200m H2O
Accuracy: ±0.5%F.S, ±0.25%F.S(by customized)
Output signal: 4-20mA, 0-5V, 0-10V, RS485, SDI-12
Power supply: 7-30Vdc/8-30Vdc/13-30Vdc/5Vdc /12Vdc/12-30VDC/3.5-36Vdc
Working Temp: -40℃~80℃
Medium compatible: 316L stainless steel
Temperature Compensation: 0℃~80℃
Burst Pressure: 500% F.S.
Electronice connection: Fixed cable and water proof IP68

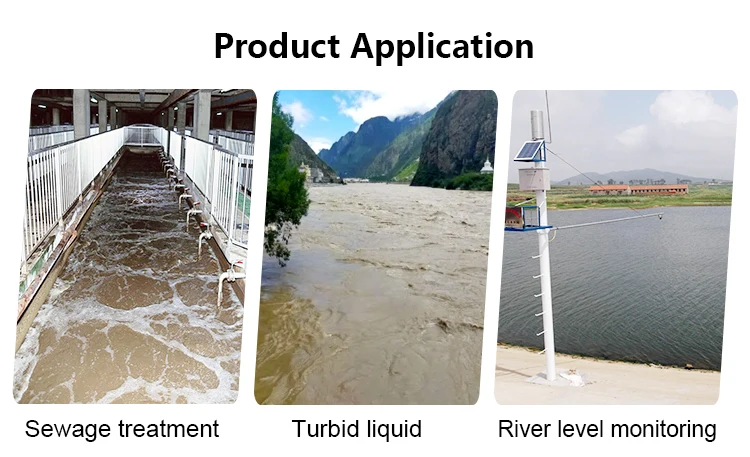

Application: Sewage, waste water, river, groundwater
Hello, I am Bella. Welcome to my store. Due to the time difference, I am unable to reply to your messages in a timely manner. If you need to know more about this product, please leave your product requirements. I will reply to you as soon as I see them.
Welcome to add me on WhatsApp+8618873400744
E-mail 2635550985@qq .com
|
Pressure Range
|
0-0.1 Bar…..20 Bar / 0-1m…..200m H2O
|
|
Overload
|
150% F.S.
|
|
Burst Pressure
|
500% F.S.
|
|

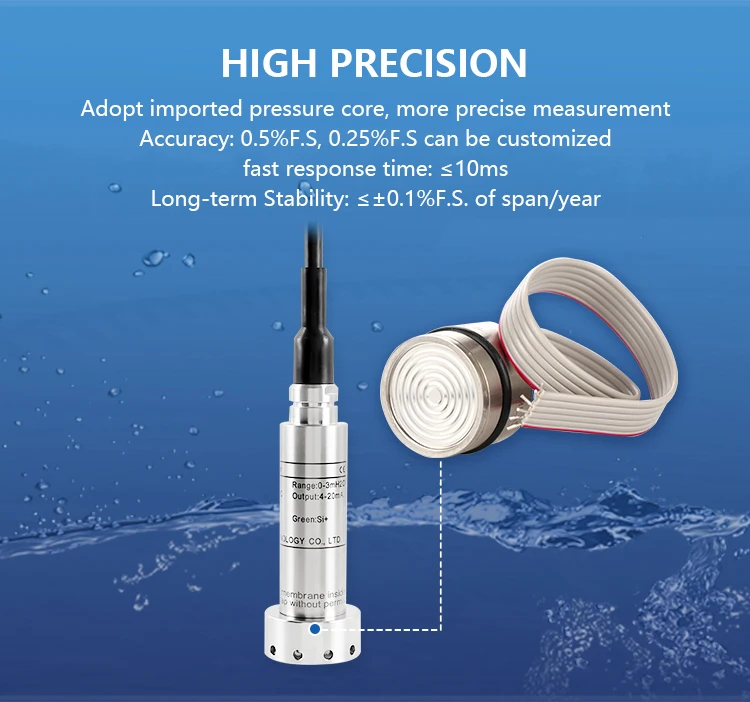

Accuracy
|
≤ ±0.5%F.S (Typical) ; ≤ ±0.25%F.S(by customized) @25 degree C
|
|
(Linearity Hysteresis
|
Including non-lin., rep. and hys.
|
|
Repeatability)
|
Optional
|
|
Long-term Stability
|
≤ ±0.1%F.S. of span/year
|
|
Working Temp.
|
-40-80℃(non-corrosive medium)
|
|
Storage Temp.
|
-40℃~80℃(Nitrile rubber sealing ring); -20℃~80℃(fluororubber rubber sealing ring)
|
|
Temperature Compensation
|
0℃~80℃
|
|
Medium compatible
|

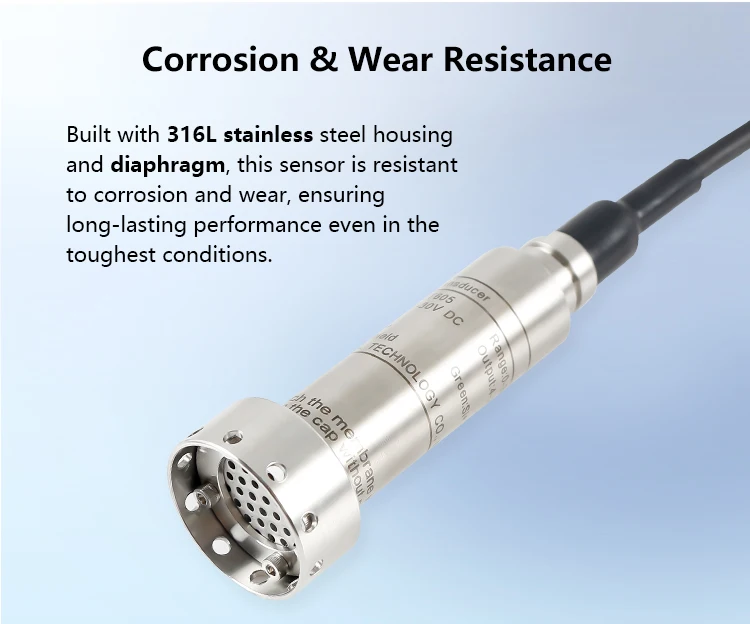

Compatible with 316L Stainless Steel
|
|
Output signal
|
4-20mA, 1-5V, 0.5-4.5V, 0-5V, 0-10V, RS485, SDI-12
|
|
Zero Temp. Drift
|
0.2%FS/℃（≤100kPa）； 0.1%FS/℃（>100kPa）
|
|
FS Temp. Drift
|
0.02%FS/℃（≤100kPa）； 0.01%FS/℃（>100kPa）
|
|
Electrical connection
|

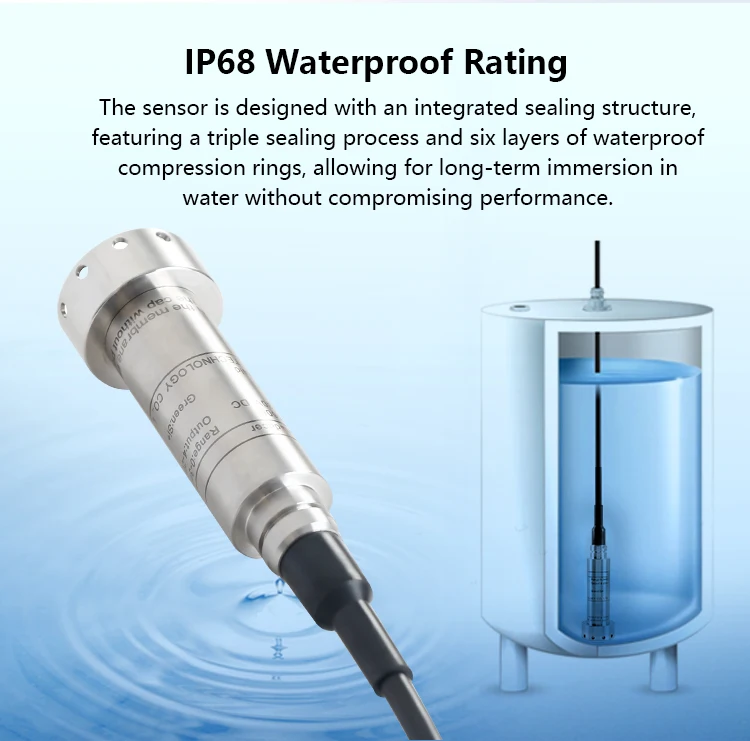

Fixed cable with vented tube and water proof IP68
|
|
Response time
|
≤10 ms
|
|
Pressure Type
|
Gauge pressure; Sealed gauge and absolute optional
|
|
Certificate
|
TUV RoHS and CE Certificate
|
|
EMC Standard
|
EN 61326-1:2013; EN 61326-2-3:2013
EN 61000-6-2:2005; EN61000-6-4:2007+A1 |
|
Lightning Protection
(optional functions) |
Air conduction more than 8000V; external sensor more than 4000 Voltage protection.
|
|
Cable optional
|
PE Cable（Water Proof）; PU Cable（Oil/Fuel Proof）; FEP Cable（Anti-Corrosive）
|
HOLYKELL reserves the right of final interpretation.
Please send us your requirements to get the best quotation!
FAQ
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
